설비현황

설비명을 눌러 해당 설비의 상세내역을 확인할 수 있습니다.
Raw Material and Nc Feeder Blanking Press 1,300Ton Auto Robot Line Up 1,000Ton Auto Robot Line Up 300Ton Auto Robot Line Up 200Ton Auto Shuttle Line Up 400Ton Tandem Line Up CO2 Welding Robot Line Up Robot Spot Line Up Raw Material and Nc Feeder Blanking Press 1,300Ton Auto Robot Line Up 1,000Ton Auto Robot Line Up 300Ton Auto Robot Line Up 200Ton Auto Shuttle Line Up 400Ton Tandem Line Up CO2 Welding Robot Line Up Robot Spot Line Up

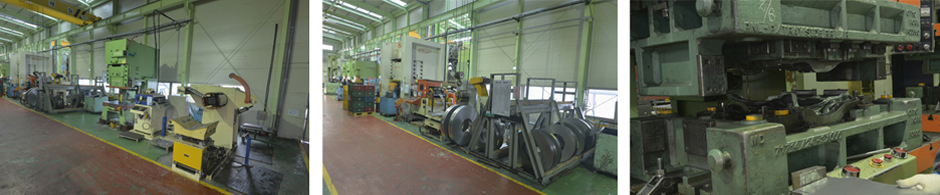

Raw Material and Nc Feeder
Process Line은 1500Ton에서부터 소형 Process 및 NC Feeder까지
완벽한 설비를 확보하여 고객이 만족하는 품질의 제품을 만들기 위해 노력하고 있습니다.
또한 Welding Line의 자동화로 품질향상 및 생산성을 크게 높였습니다.
동영상
Equipment Name Specification Model QTY
NC Leveler Feeder
1600 X 5t (mm) KDM 1
1500 X 5t (mm) KDM 1
1300 X 3.2t (mm) KDM 1
800 X 5t (mm) KDM 2
600 X 5t (mm) KDM 1

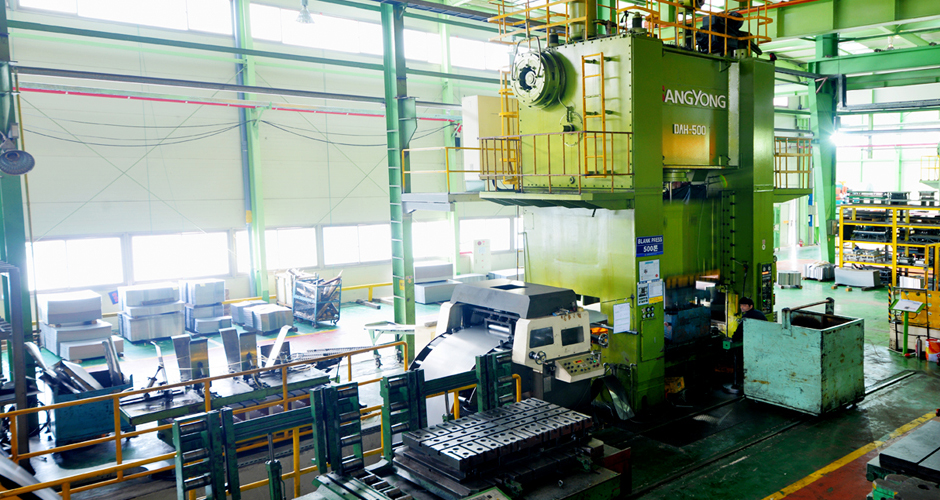

Blanking Press

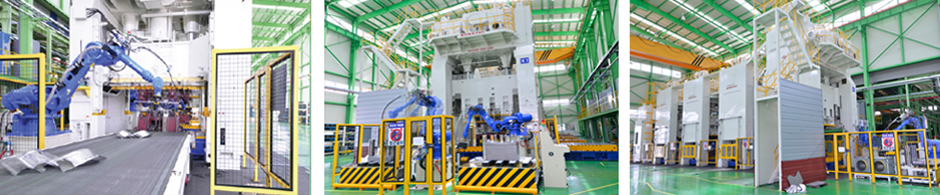

1,300Ton Auto Robot Line Up
Head Tonnage Die Heights Model QTY
1,300 1,280/780 KOMATSU800 1
800 1,300/650 KOMATSU400 1
400 1,300/650 KOMATSU400 1
400 1,300/650 KOMATSUS400 1
400 1,000/600 아이다400 1
ROBOT 165kg YASKAWA 7

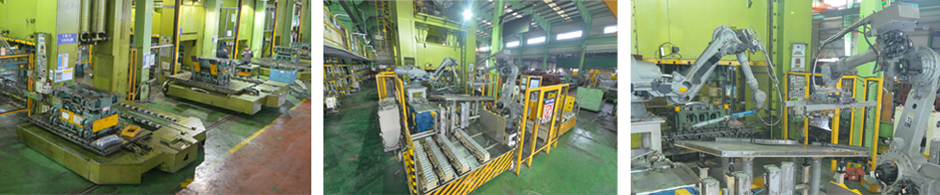

1,000Ton Auto Robot Line Up
Head Tonnage Die Heights Model QTY
1000 1100/600 JCCP1000 1
600 1050/750 DCP600 1
400 1300/800 GS400 1
400 1300/800 GS400 1
400 1300/800 GS400 1
ROBOT 165kg YASKAWA 7

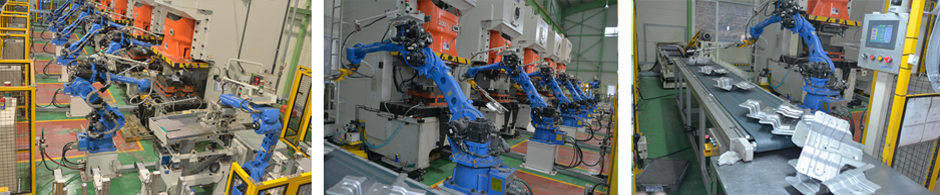

300Ton Auto Robot Line Up
Head Tonnage Die Heights Model QTY
300 550/430 HIM250 1
200 550/450 HIM200 1
200 550/450 HIM200 1
200 550/450 HIM200 1
200 550/450 HIM200 1
ROBOT 165kg YASKAWA 7

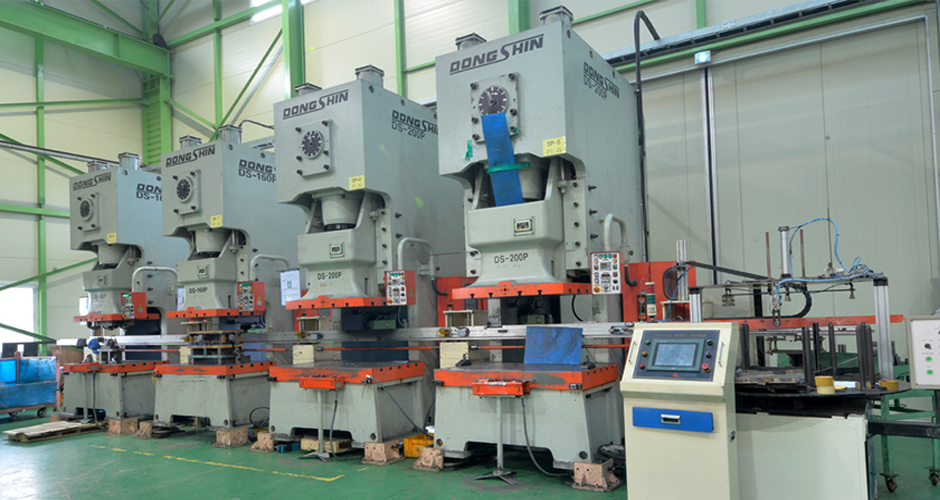

200Ton Auto Shuttle Line Up
Head Tonnage Die Heights Model QTY
200 525/380 DS200P 1
200 525/380 DS200P 1
160 480/400 DS160P 1
160 480/400 DS160P 1
400Ton Tandem Line Up
Head Tonnage Die Heights Model QTY
400 650/400 SDH400 1
250 550/380 KS200B 1
250 580/430 PCA250N 1
250 500/390 SSC200 1
200 510/390 WS200N 1
200 600/470 DS200P 1

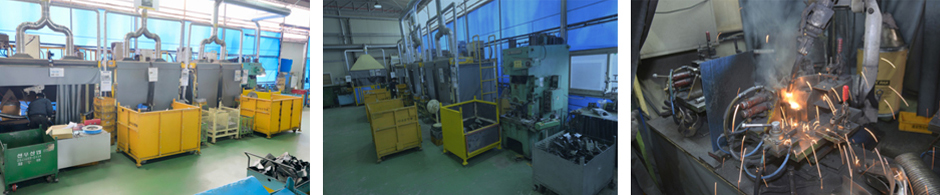

CO2 Welding Robot Line Up
Robot Model QTY
7kg OTC 6

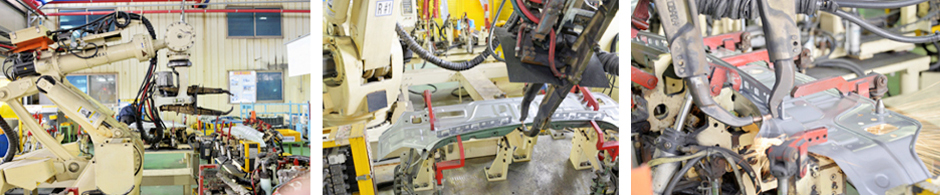

Robot Spot Line Up
C
